HOT AIR CIRCULATION

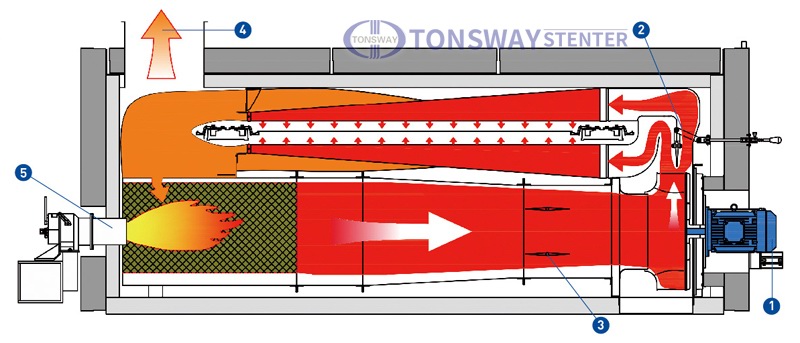

Gas

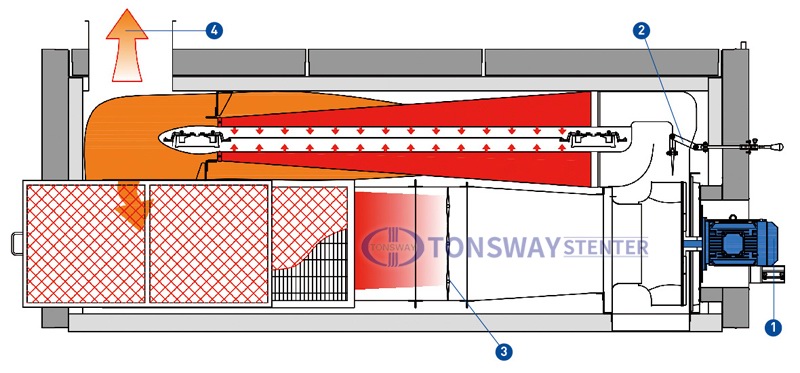

Thermo-Oil/Steam

1. Fan
2. Damper
3. Stop mark preventing Damper
4. Exhaust air
5. Gas heating

• Air volume increased by bigger fan increased circulation speed, lower chamber height 200mm for save energy loss
• Easy maintenance and reduce time loss by making possible to enter chamber inside for repair and cleaning
• Easy control of hot air distribution of upper & lower nozzle
• prevent stop mark on fabric in case of emergency stop
